High-Rise High-Strength Steel

High-Rise High-Strength Steel, also known as "high-rise construction steel", is a specialized steel grade developed to meet the stringent performance requirements of modern super high-rise buildings and large-span venues. As buildings push beyond traditional height limits, conventional steel has shown limitations in load-bearing capacity, seismic resistance, and weldability. High-Rise High-Strength Steel is specifically engineered to address these challenges.


Product Advantages

  • Superior seismic performance (low yield ratio)

    This is the core advantage of High-Rise High-Strength Steel. The yield-to-tensile strength ratio is typically required to be ≤0.85. This ensures sufficient plastic deformation capacity after yielding to dissipate seismic energy, functioning like a resilient spring to effectively prevent brittle structural collapse and ensure life safety.

  • Excellent weldability and processability

    Through controlled carbon equivalent (CEV), High-Rise High-Strength Steel can be welded without or with minimal preheating and without post-weld heat treatment, facilitating on-site construction, improving efficiency, and reducing costs.

  • Higher load-bearing efficiency and material utilization

    Under the same load conditions, high-strength steel (e.g., Q460GJ) can significantly reduce component dimensions and steel consumption. For example, in super high-rise buildings, the use of high-strength steel such as Q460GJ achieves notable structural lightweighting, saving resources and supporting green construction.

  • Reliable resistance to lamellar tearing (Z-direction performance)

    For plates subjected to through-thickness tension in super high-rise buildings, High-Rise High-Strength Steel ensures Z-direction reduction of area through strict sulfur content control and special refining processes, effectively preventing lamellar cracking under complex stress conditions.


Market Applications

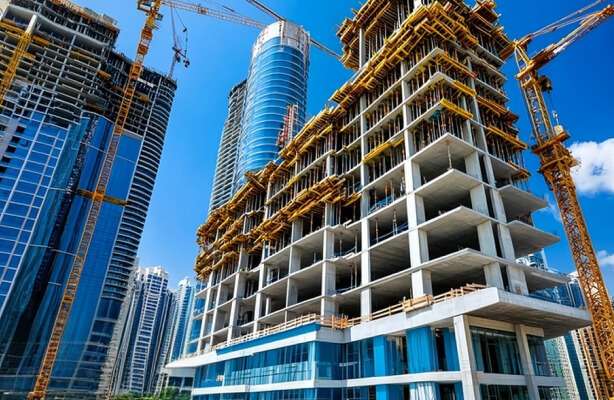

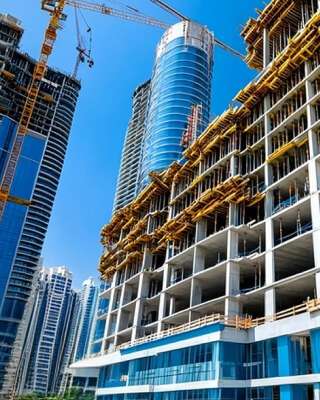

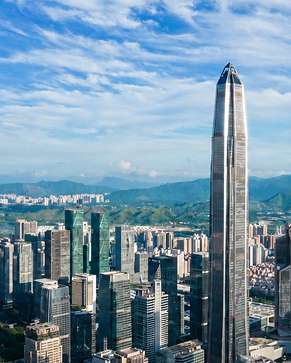

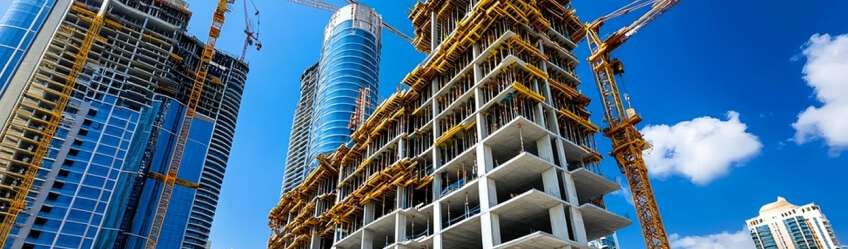

  • Super high-rise buildings

    The "skeleton" of global skyscrapers, such as the 517-meter Six Senses Residences in Dubai and the Shougang Ski Big Air venue.

    settings-白.svg settings-蓝.svg
  • Large public facilities

    Ideal material for large-span structures including sports stadiums, airport terminals, and convention centers.

    settings-白.svg settings-蓝.svg
  • Industrial and commercial facilities

    Main structural components of modern buildings such as high-rise steel-structured factories, office buildings, and large commercial complexes.

    settings-白.svg settings-蓝.svg

Specifications

Execution StandardGradeGuaranteed Properties (mm)Guaranteed Ultrasonic Testing (mm)Delivery Condition
GB/T19879Q235GJB/GJC/GJD/GJE、Q355GJB/GJC/GJD/GJE、Q390GJB/GJC/GJD/GJE、Q420GJB/GJC/GJD/GJE、Q460GJB/GJC/GJD/GJE、Q500GJC/GJD/GJE、Q550GJC/GJD/GJE、Q620GJC/GJD/GJE、Q690GJC/GJD/GJE6~1006~100AR、CR、NR、N、NT、TM、TM+T、QT
GB/T1591Q355B/C/D、Q390A/B/C/D/E、Q420A/B/C/D/E、Q460C/D/E、Q355MB/MC/MD/ME/MF、Q390MB/MC/MD/ME、Q420MB/MC/MD/ME、Q460MC/MD/ME6~1006~100AR、NR、TM、N
GB/T1591
GB/T16270
Q500MC/MD/ME、Q550MC/MD/ME、Q620MC/MD/ME、Q690MC/MD/ME、Q500C/D/E、Q550C/D/E、Q620C/D/E、Q690C/D/E、Q800C/D/E、Q890C/D/E、Q960C/D/E6~1006~100TM、TM+T、QT
EN10025S355JOWP/J2WP、S355JOW/J2W/K2W/J4W/J5W、S420JOW/J2W/K2W/J4W/J5W、S460JOW/J2W/K2W/J4W/J5W6~1006~100AR、N、TM
S460Q、S460QL、S460QL1、S500Q、S500QL、S500QL1、S550Q、S550QL、S550QL1、S620Q、S620QL、S620QL1、S690Q、S690QL、S690QL16~1006~100QT
ASTM A572Gr42、Gr50、Gr55、Gr60、Gr656~1506~100AR、N
ASTM A588GrA、GrB、GrK6~1006~100AR、N、TM
ASTM A871Gr60、Gr656~906~90AR、N、QT
ASTM A1043Gr36、Gr506~1256~100AR、N、TM、QT
ASTM A514GrB、GrE、GrF、GrH、GrS6~1006~100QT
ASTM A678GrA、GrB、GrC、GrD6~756~75QT
ASTM A852A8526~1006~100QT
ASTM A1066Gr70、Gr806~506~50TM
JIS G 3136SN400A/B/C、SN490B/C6~1006~100AR、TM、N、T
View More
